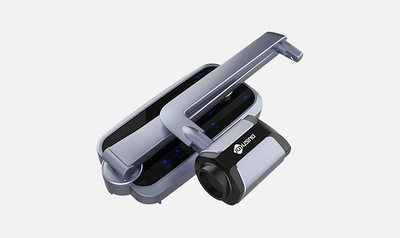

Joyusing V1XS

Optical Zoom Document Camera

  • Joyusing V1XS enables educators to provide real-time, realistic presentations that attract the attention of everyone in the room. V1XS features an 8.0MP sensor, 12 times optical zoom camera, and a built-in 5" preview screen, together with a multifunctional rotary knob.

  • 12x Optical Zoom | Full HD 1080P/60FPS | 5" LCD Preview Screen | Shooting Area up to A3 | PC/PC Free | Touch Keys | HDMI & USB & VGA Mode
OVERVIEW

12x Optical Zoom and 10x Digital Zoom

Equipped with a new professional image sensor, V1XS document camera will be easy to display every vibrant detail for students with an immersive classroom.

Annotation without PC

Equipped with 5.0" LCD screen and touch panel, V1XS can be easily plug in a mouse or pen tablet to preview and edit images with no computer required. Such intuitive features help enrich teaching and makes interactive learning so easy.

Full HD Quality at 60fps

BY ultra smooth video performance of 60 frames per second (fps) at a 1080p,V1XS allows you to steam real-time images to any monitor in a digital interactive classroom.

To Zoom In and Zoom Out by Knob Stepless Adjustment

It is convenient for you to zoom in and zoom out by knob stepless anjustment. Also, it comes in very handy to control the touch panel when the device is in the state of PC free.

Portable Folding Design for Easy Storage, Flexible Arm for Adjustment

Fold-over design and flexible arm designs to meet your different needs for easy storage.

Multiple Modes Interface

Equipped with HDMI in/out, VGA in/out, USB, SD card slot for better compatibility, besides, Line in/out are also available.

Visualizer Software For Document Cameras

Joyusing visualizer is a software for Joyusing document camera. It is compatible with Mac, Windows, Chrome OS. Moreover, it features snapshot, recording, annotation, picture-in-picture to enhance any lesson.

SPECIFICATIONS

HEIGHT x WIDTH x DEPTH

11.14" x 5.43" x 18.66" / 283mm x 138mm x 474mm

SENSOR

1/2.5" CMOS 8.0MP

RESOLUTION

3264X2448

SHOOTING AREA

Max. A3=16.5" x 11.7 " / 420mm x 297mm

ZOOM IN

Optical Zoom: 12x / Digital Zoom: 10x

FRAME RATE

60FPS

FOCUS MODE

Auto Focus

SYSTEM

Mac, Chrome OS,  Windows XP and above

LENS

F=1.5

ILLUMINATION SYSTEM

Fill-in 1 High Power LED Light

MICROPHONE

Built-in Mic

INTERFACE

HDMI IN/OUT, VGA IN/OUT, LINE IN/OUT, SDXC, USB
