Joyusing V500W
Wireless Document Camera


  • V500W wireless document camera features four connection modes WiFi/HDMI/VGA/USB. You can connect it with a computer, Mac, Android devices via WiFi/USB, or directly with an interactive panel, projector, or monitor via HDMI/VGA that best suits your needs. That is a wireless(WiFi), HDMI, USB, VGA connectivity.

  • WiFi Connection | Power Supply for 6 to 9 Hours | Stunning Images at 4K | Universal Systems Compatibility
OVERVIEW

Wireless Connection for Your Classroom

Create a direct connection to computer( (Win10/MacOS), Andriod Tablet/Android Phone by WiFi. It is convenient to use V500W WiFi document camera in anywhere and anytime, and to enjoy wireless freedom. With a battery life of 9h, V500W will last through your entire teaching or presentation session.

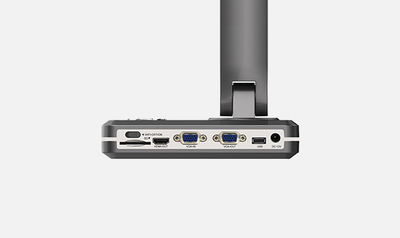

Wireless, HDMI, USB, VGA Connectivity

4 connection modes are available for your different needs,including WiFi, HDMI, USB, and VGA connectivity. Direct HDMI/VAG projection to a TV, monitor, or projector. No computer required. USB connect to a computer. Computer is necessary. Wireless connection to Android devices by WiFi.

Direct HDMI/VAG Projection to a TV, Monitor, or Projector with No Computer Required

The HDMI connection is available to a touch screen, monitor, or projector because of built-in PC-free software. The PC-free mode include rotation, split-screen, annotation and magnifying, etc. An immersive classroom is easy to come out with the help of a V500W document camera.

High-quality Image and Amazing Coverage

Provide great details and image quality with 4K output at 30fps and 100 digital zoom. The massive shooting area of 16.75” × 11.7” allows you to capture and share any large documents and objects like never before.

Flexible and Multi-jointed Body Contributes to True Distance Learning

The V500W swiveling head and multi-jointed body let you easy to capture images from different heights, angles, and orientations clearly. In real time streaming, being a webcam, it comes in handy to switch to any orientation when you are having a digital interactive classroom or flipped classroom.

Camera Control Buttons

The circular action button panel located at the base of V500W provide quick access to Joyusing Visualizer software's functions, no matter in PC free or PC required , such as zooming/out, autofocus, snapshot, etc.

Wide Software Compatibility for

Distance Learning

When connected to your computer via USB, you can use V500w with Joyusing Visualizer software. You can simple create a flipped classroom or digital interactive classroom. V500W is equipped with 2-in-1 solution, also as a webcam, for video conferencing or remote teaching via communication software such as Zoom, Skype, GoToMeeting, etc.

Visualizer Software For Document Cameras

Joyusing visualizer is a software for document camera. Easy to show what your camera sees, either on a big screen or in an online conferencing app.
SPECIFICATIONS

HEIGHT x WIDTH x DEPTH

14.29" x 7.87" x 4.13" / 363mm x 200mm x 105mm

SENSOR

1/3.2”CMOS 8.0MP

RESOLUTION

3264X2448

SHOOTING AREA

Max. A3=16.5" x 11.7 " / 420mm x 297mm

DIGITAL ZOOM

 100x

FRAME RATE

30FPS

FOCUS MODE

 Auto Focus

SYSTEM

Android, Mac, Chrome OS, Windows XP and Above

BATTERY/WIFI

Support

ILLUMINATION SYSTEM

11 Fill-in LED Lights

MICROPHONE

Built-in Mic

INTERFACE

HDMI OUT / VGA IN / VGA OUT / USB / SDXC
