Joyusing V508
PC Free Document Camera
  •
    With an upgraded chip, Joyusing V508 delivers full HD images at 60FPS with PC-Free functions. Power the V508 on, attach an HDMI or VGA cable to an interactive panel, monitor, or projector, and it’s ready to go.
  •
    Built-in PC Free Software | 8.0 Mega Pixels | Fast Auto Focus | Shooting Area up to A3 | HDMI & USB & VGA Mode | Friendly Software Interface
  •
    Download - V508 Document Camera Datasheet ⇩
OVERVIEW

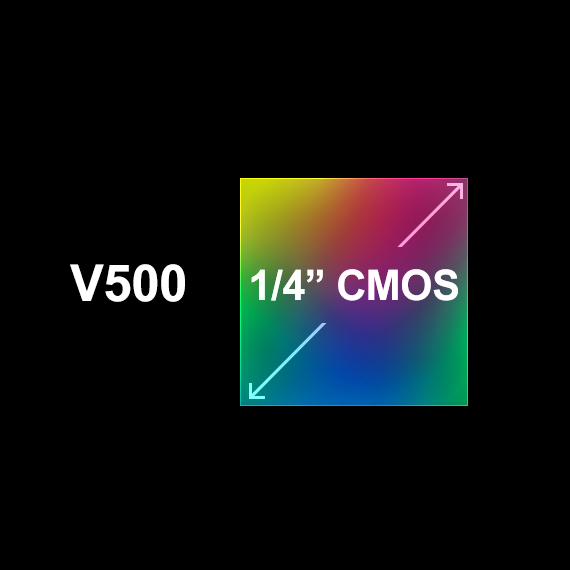

Sensor Size & Frame rate

Similarities between V508 and V500

Resolution & Shooting Area & Interface & Focus Mode

Differences between V508 and V500

Full Features in PC Free Software

The HDMI connection is available to a touch screen, monitor, or projector because of built-in PC-free software. The PC-free mode include rotation, split-screen, annotation and magnifying, etc. An immersive classroom is easy to come out with the help of a V500 document camera.

Crystal Clear Image by 8.0MP Camera

Enjoy superb image quality with 100x digital zoom function. You can never miss any tiny detail.

PC Software is Available

Just use a USB cable to connect the PC and document camera.

Flexible Multi-jointed Design

Five joints in two arms, providing great flexibility to view every detail from close-up to full shot of an object at any angle.

Easy Physical Buttons & Multiple Ports

Press one button to zoom, auto focus or go to the main menu, it is helpful in PC free scenario. Ports available for USB / VGA IN&OUT / HDMI, SD Card. You can always find a connection to your devices.

SPECIFICATIONS

HEIGHT x WIDTH x DEPTH

7.28" x 11.61" x 12.59" / 363mm x 200mm x 105mm

SENSOR

1/3.2" CMOS 8.0MP

RESOLUTION

3264X2448

SHOOTING AREA

Max. A3=16.5" x 11.7 " / 420mm x 297mm

DIGITAL ZOOM

100x

FRAME RATE

30FPS

FOCUS MODE

Auto Focus

SYSTEM

 Mac, Chrome OS, Windows XP and Above

SD CARD

SDXC, FAT 32

ILLUMINATION SYSTEM

11 Fill-in LED Lights

MICROPHONE

Built-in Mic

INTERFACE

HDMI OUT / VGA IN / VGA OUT / USB / SD
