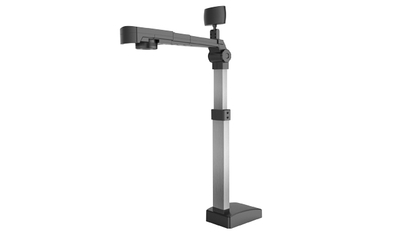

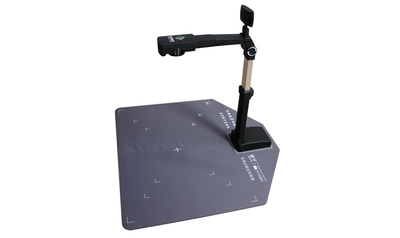

C503AF Camera Scanner
Joyusing C503AF
Camera Scanner
OVERVIEW
HIGHLIGHTS
DATASHEET
OVERVIEW
Information counters data acquisition & identity verification preferred Document Scanner Patent design, A3 format, the king of integrated module expansion.
HIGHLIGHTS
5.0MP/8.0MP
|
1/4" CMOS
|
Foldable Design
|
High Brightness LED
|
OCR Function
|
TWAIN drive
|
Secondary Development Support
DATASHEET
Download - C Series Document Scanner Datasheet ⇩
REQUEST A QUOTE
｜
OVERVIEW
Built-in Larger Size Condensor Lens with Higher Optical Standard
Different megapixel comes out with different images clarity. Many ones are available for your needs, including 5.0 / 8.0 / 10.0MP.
High Brightness LED
Embedded with high brightness LED fill-in light, scanner is able to perform well in dim conditions.
Powerful OCR for Diverse Formats
It supports 180 languages. An easy click of OCR to create editable Word, Excel, TXT, PDF, and TIFF format in color and gray.
Portable Structure
Lightweight and foldable, snap-fit design to fix after unfolding, convenient to carry everywhere.
USB Connection
Data transmission and power supply could be accomplished by one USB cable connected to PC.
Mature Doccamera SDK and TWAIN Driver
Doccamera SDK is Joyusing self-developed control kit, supporting Java, C#, VC++, VB, and other mainstream languages. Simple, efficient and stable.
｜
SPECIFICATIONS
HEIGHT x WIDTH x DEPTH
70mm x 100mm x 338mm
SENSOR
1/3.2" CMOS
RESOLUTION OPTIONS
5.0MP / 8.0MP/ 10.0MP
FOCUS MODE
Auto Focus
SYSTEM
Windows XP and above
SHOOTING AREA
Max. A3=16.5" x 11.7" / 420mm x 297mm
LENS
F=2.8
ILLUMINATION SYSTEM
LED Fill-in Lights
INTERFACE
USB2.0
｜
