Home / Joy-BookScan V160

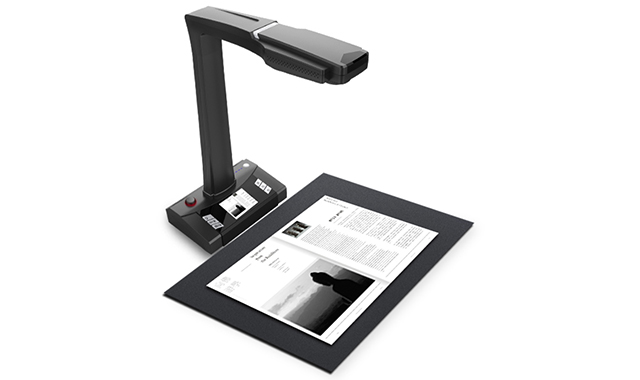

​Joy-BookScan V160

16 Mega Pixels High Resolution

Stepless Light Control | HD LCD Screen | 16MP HD Camera  | Exclusive image processing software | ABBYY OCR Function

16 Mega Pixels High Resolution Book Scanner
  • Get Pricing
    Expecting to bring up more values to customers,Your satisfaction is our Pride.
  • Download a Catalog
    Find the latest downloads and updates for your JOYUSING products.
  • Video Overview
    Check Out ​Joy-BookScan V160 Features With This Video.
  • Returns & Exchanges
    Find an answer to any Bitcoin-related question.
High Resolution photo scanner
Stepless Light Control

Low-energy but bright LED light with diffuser better meets the requirements of various conditions.
16 Mega Pixels CMOS sensor
High Resolution

​Output crisp, colorful and high definition images by 16 Mega Pixels CMOS sensor. The proprietary algorithm makes sure optimized imaging quality, enhanced characters and every detail on the paper.
HDMI or VGA port
Wide Variety Of Interfaces

​All the interfaces are hidden behind its back for a sleek look. HD images are easily displayed on the screen by connecting to the HDMI or VGA port. The VGA IN/OUT ports can also be functioned as a signal switcher, and additionally, it has other interfaces for USB flash disk, mice, scan button, tablet and other external devices.
to preview what you scan without PC connection.
HD LCD Screen

​Equipped with a 2.1” HD LCD screen, to preview what you scan without PC connection.
Exclusive Image Processing Software For Book Scanner
Exclusive Image Processing Software

Includes rich color modes and processing functions to satisfy all your needs. We have considered the matter of handling the hardest-to-open books, so an advanced algorithm including curve flatten, distortion correct, finger erase and other processing practical functions were developed.
Specifications
  • Max 18.0 Megapixel camera
  • Ultra high definition resolutions up to 4608 x 3456
  • Full autofocus lens
  • Up to 30 fps live video capture (at full HD)
  • USB 2.0 Video Class (UVC) interface
  • Device Control, Software triggering,Hand button, Foot pedal compatible
  • Max Scanner area: Format ≤ A3
  • Size (LxWxH): 8.66" x 14.76" x 15.35" (220 x 375 x 390mm)
  • Weight: 2.38lbs (1.08g)
  • USB cable length: 4.90ft (150cm)
  • Color: Black
