Joy-DocCam C Series A3 5MP/8MP Portable Document Scanner

1. 5M/8M Pixel HD FF/AF Camera

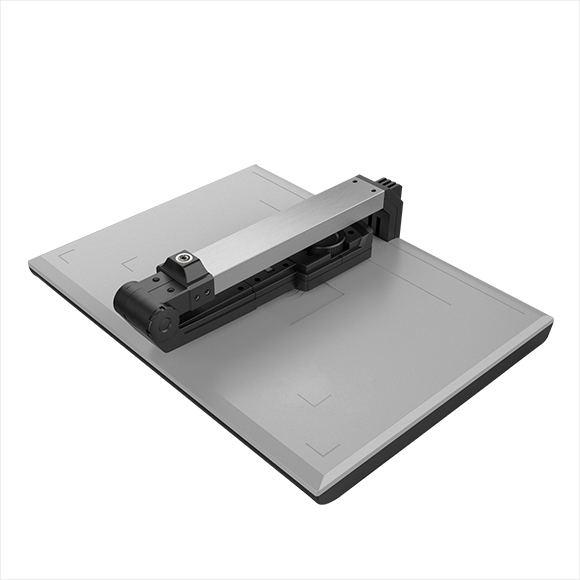

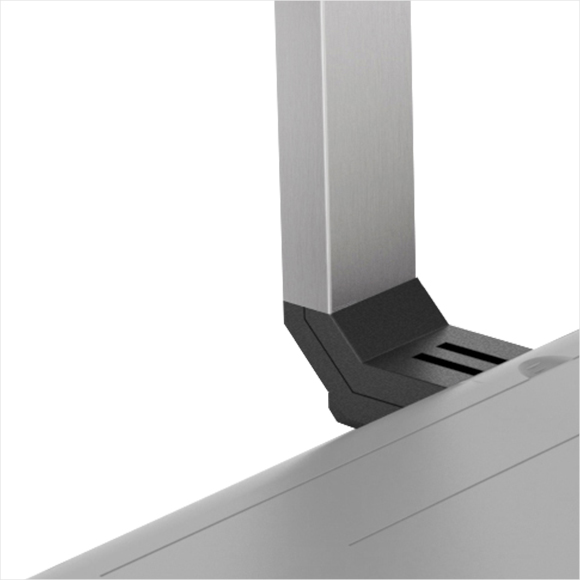

2. Portable Folding Main Body, Easy to Store
3. High-brightness LED Auxiliary Lights, Touch-control/Software-control Dimming
4. Scalable Secondary Camera Optional/Face Recogniton Camera Optional/Fingerprint Reader Optional
5. Based on TWAIN Protocol Interface
6. Provide a Mature SDK/API/DEMO
7. Integrated ABBYY Optical Character Recognition Function

Quantity:

Information counters data acquisition & identity verification preferred Document Scanner Patent design,

A3 format, the king of integrated module expansion.

1




2


3

10 MP high resolution camera with A3 scan size

JOYUSING C103 can scan drawing, pictures,newspaper,

poster and any documents within A3(297mm×420mm) size.



Flexible from A3 to A4

4



5

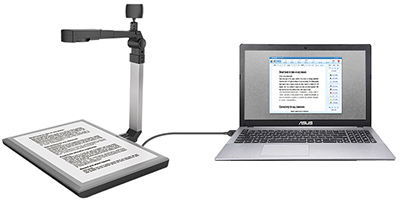

Easy to use with USB cable only Simply connect the USB

cable to the C103,you can enjoy high-speed scanning.

Expandable scanner with 3 USB2.0 ports and 1 USB

type B port Can be connected to finger print reader,

ID card reader etc.

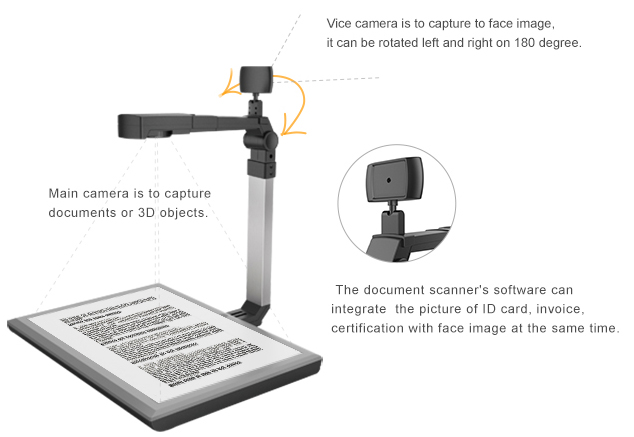

360 degree horizontal rotation vice camera optional

As video recording camera in Information Counter,

it can record the customers or identity verification.

6



7


Compact size compared to traditional scanner.

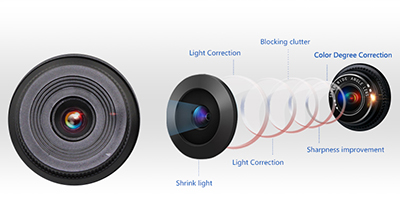

10.0M resolution promise high-level image quality

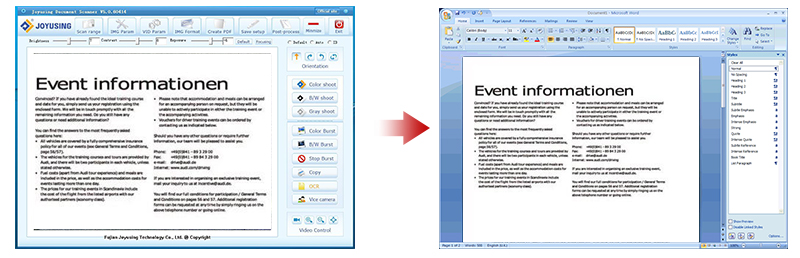

Powerful OCR recognition from ABBYY

Accurately convert scanned paper documents, images and PDFs to Word, Excel, TXT, searchable PDF and other formats.

Powered by ABBYY's leading OCR technology, support more than 180 languages.The recognition rate reaches up to 98%,

supporting the mixed recognition of multi-language, character, and number with the same layouts results as original images.

JOYUSING document scanner makes digitizing processes fast and easy.

OCR

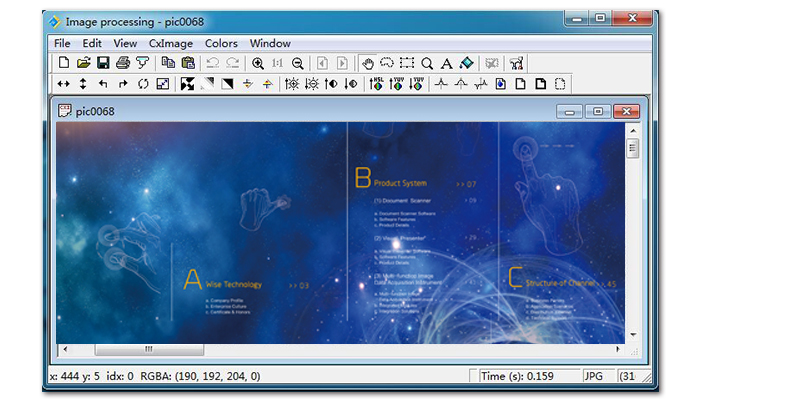

Image edits processing

JOYUSING software has strong image edit functions: rotate, characters adding, image cutting, saturation,  contrast Ratio.

9

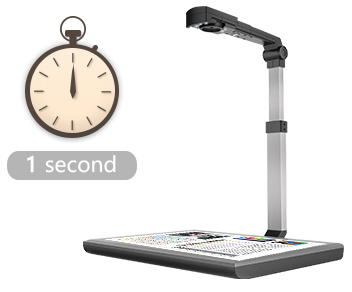

Fastest scanning

It is specially designed for information counters which have very high requirement on high speed scanner.


10




11

Video recording

It can record the progress of any operation or demo for

real time display applied in lab operation steps, product

training and other demonstration.

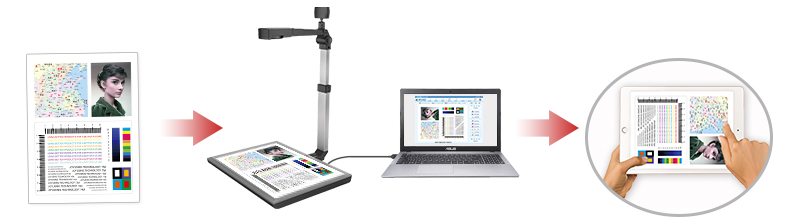

PDF conversion

Different documents can be scanned and converted into PDF which can be checked on various devices.

12




13


All-Round scan

Suitable to scan documents, receipts, bills, certificates, books, 3D real objects etc.

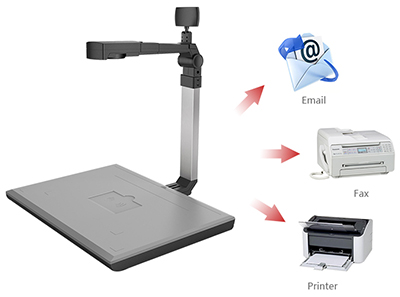

Print, Fax, Email, Office Integration

JoyUsing software can be connected to email, fax and printer to achieve office all-in-one.


14


JoyUsing C Series Document Scanner


Resolution of main camera2592×1944(5MP),3651*2738(10MP)
Sensor1/4" CMOS
Image colorRGB24bits
Focus modeAuto / Fixed
Exposure modeAuto / Manual
Shooting Object typesDocuments, all kinds of vouchers, 3D objects and so on
Shooting areaA3,A4,A5,A6,sim card
Image formatJPG、TIF、PNG、BMP、PDF
Image sizecolor≤300K;mono≤60K
Image qualityUnrecognizable flashing, ripples, noise with the naked eye, conventional light changes do not affect the picture quality
Light sourceNatural light, LED auxiliary light source
Scan speed≤1 second
Product size70mm×100mm×335mm
Product weight660g
InterfaceUSB2.0
Redevelopment interfaceBased on TWAIN, provide complete redevelopment kit like SDK,API and DEMO.


Vice camera(optional)Sensor1/4CMOS
Resolution1600×1200(2MP)
Output formatRGB(24bits)
Focus modeFixed focus
Response time≤1 second
Capture image size≤150K
