Joy-DocCam E Series 2MP/5MP/8MP Portable Document Scanner

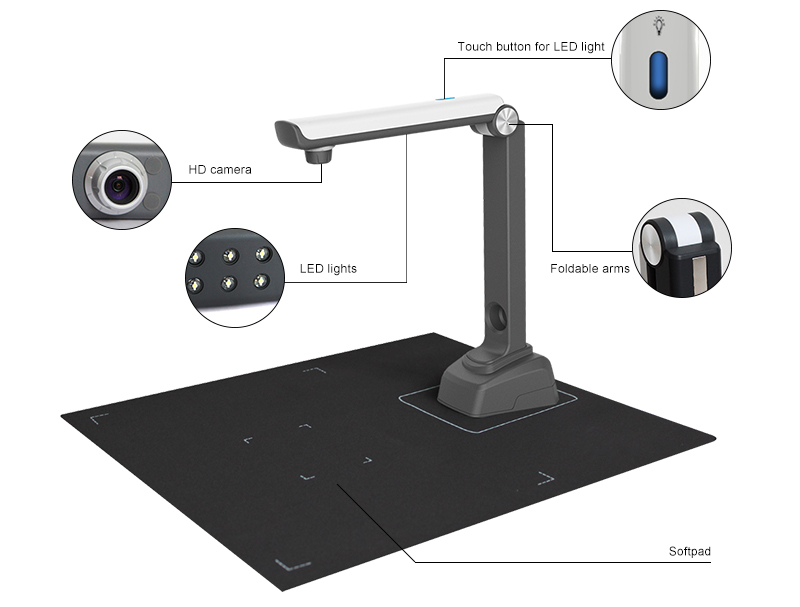

1. 2M/5M/8M Pixel HD FF Camera
2. Portable Folding Main Body, Easy to Store
3. A4 Format with a Complimentary Document Mat, Optional Hard Base
4. High-brightness LED Auxiliary Lights, Touch-control Dimming
5. Based on TWAIN Protocol Interface
6. Provide a Mature SDK/API/DEMO
7. Integrated ABBYY Optical Character Recognition Function

Quantity:

Information counters data acquisition Document Scanner Patent design,

A4 format 1 second high speed scanner.

1

2


3

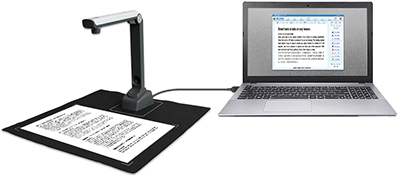

5 MP high resolution camera with A4 scan size


JOYUSING E500 can scan drawing, pictures,newspaper,

poster and any documents within A4(297mm×210mm) size.

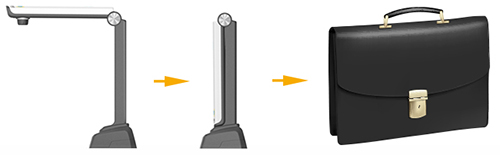

Mini scanner with portable design




4

5

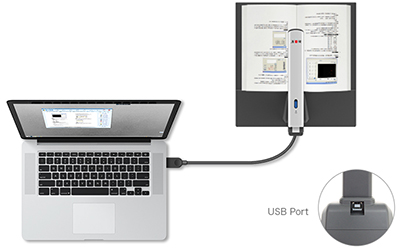

Easy to use with USB cable only Simply connect the USB

cable to the E500,you can enjoy high-speed scanning.




6




Compact size compared to traditional scanner.

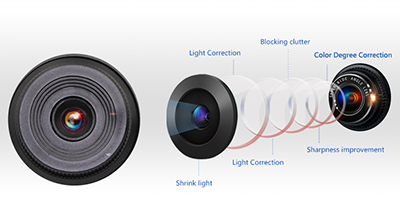

5.0M resolution promise high-level image quality

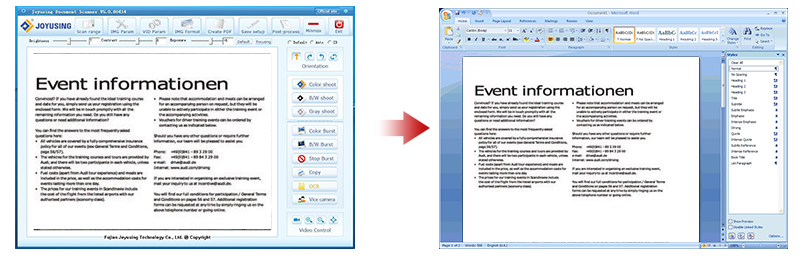

Powerful OCR recognition from ABBYY

Accurately convert scanned paper documents, images and PDFs to Word, Excel, TXT, searchable PDF and other formats.

Powered by ABBYY's leading OCR technology, support more than 180 languages.The recognition rate reaches up to 98%,

supporting the mixed recognition of multi-language, character, and number with the same layouts results as original images.

JOYUSING document scanner makes digitizing processes fast and easy.

7

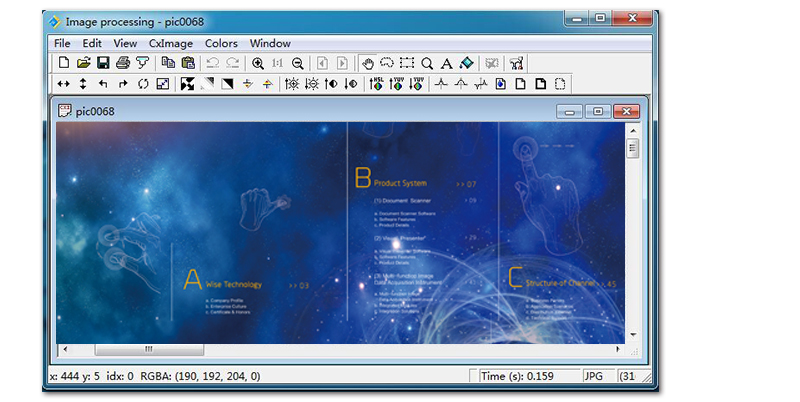

Image edits processing

JOYUSING software has strong image edit functions: rotate, characters adding, image cutting, saturation,  contrast Ratio.

8

Fastest scanning

It is specially designed for information counters which have very high requirement on high speed scanner.




9

10


Video recording

It can record the progress of any operation or demo for

real time display applied in lab operation steps, product

training and other demonstration.

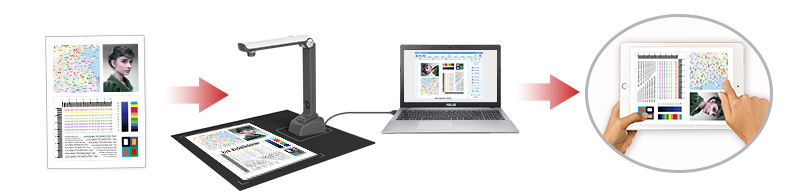

PDF conversion

Different documents can be scanned and converted into PDF which can be checked on various devices.11

12




All-Round scan


Suitable to scan documents, receipts, bills,

certificates, books, 3D real objects etc.




Print, Fax, Email, Office Integration

JOYUSING E500 software can be connected to email, fax and printer to achieve office all-in-one.

13


Specification

Resolution1600x1200(2MP),2592×1944(5MP)
Sensor1/2.5" CMOS
Image colorRGB24bits
FocusFixed focus
Exposure modeAuto / Manual
Shooting Object typesDocuments, all kinds of vouchers, 3D objects and so on
Shooting areaA4、A5、A6、sim card
Image formatJPG、TIF、PNG、BMP、PDF
Image sizecolor≤300K;mono≤60K
Image qualityUnrecognizable flashing, ripples, noise with the naked eye, conventional light changes do not affect the picture quality
Light sourceNatural light, LED touch button with 3 degrees
Scan speed≤1 Second
Distortion≤1%
Fold size92mm×82mm×265mm
Unfold size245mm×82mm×265mm
Weight408g
InterfaceUSB2.0
Redevelopment interfaceBased on TWAIN, provide complete redevelopment kit like SDK,API and DEMO.
