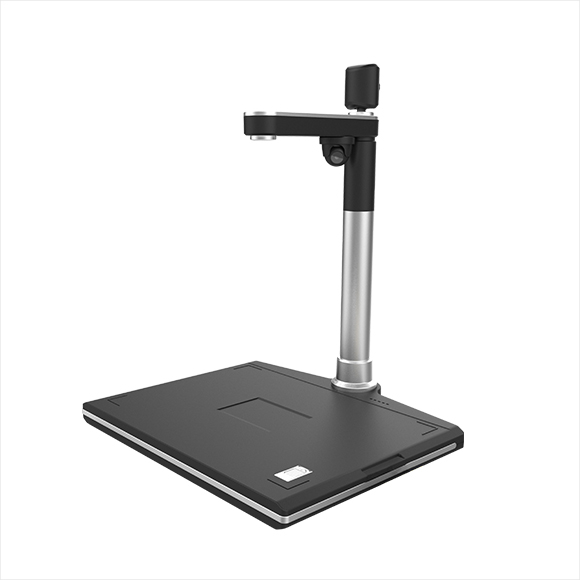

Joy-DocCam K Series A3 5MP/8MP/16MP Portable Document Scanner

1. 16MP Camera; 5M/8M Pixel Optional
2. A3 Format, Standard Hard Base Positioning
3. High-brightness LED Auxiliary Lights, Touch-control/Software-Control Dimming
4. Scalable Secondary Camera Optional/Face Recogniton Camera Optional/Fingerprint Reader Optional
5. Based on TWAIN Protocol Interface
6. Provide a Mature SDK/API/DEMO
7. Integrated ABBYY Optical Character Recognition Function

Quantity:

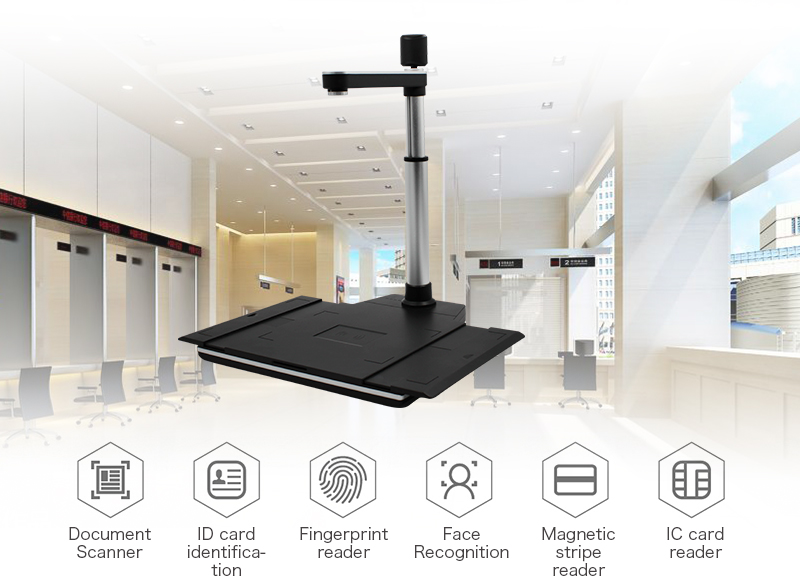

Information counters data acquisition & identity verification preferred Document Scanner Patent design, A3 format, the king of integrated module expansion.


1






3

16 MP high resolution camera with A3 scan size

JOYUSING K163 can scan drawing, pictures,newspaper,

poster and any documents within A3(297mm×420mm) size.

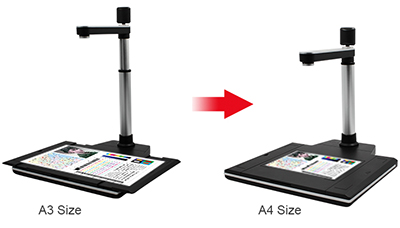

Flexible from A3 to A4

K163 scanner is with flexible arm to adjust

from A3 to A4 shooting area.


4



5

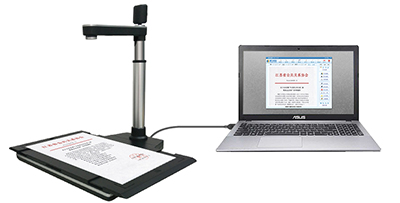

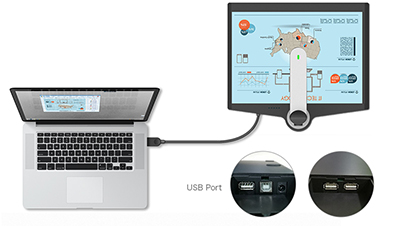

Easy to use with USB cable only Simply connect the USB

cable to the K163,you can enjoy high-speed scanning.

Expandable scanner with 3 USB2.0 ports and 1 USB

type B port Can be connected to finger print reader,

ID card reader etc.

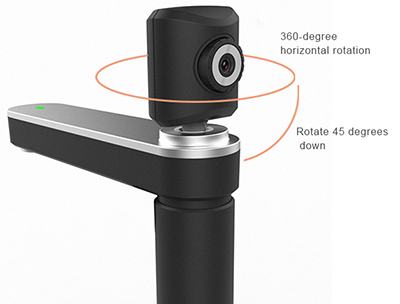

360 degree horizontal rotation vice camera optional

As video recording camera in Information Counter,

it can record the customers or identity verification.

6



7


Compact size compared to traditional scanner.

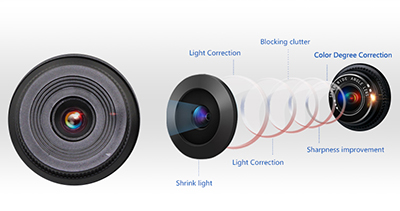

16.0M resolution promise high-level image quality

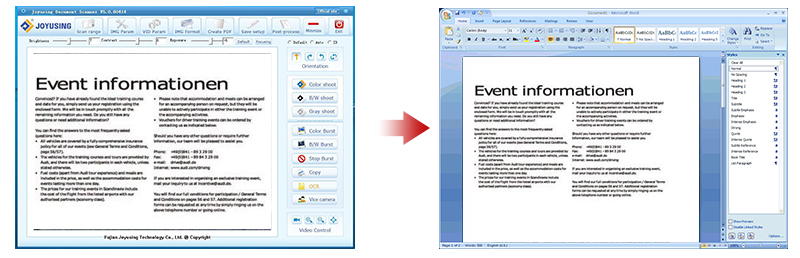

Powerful OCR recognition from ABBYY

Accurately convert scanned paper documents, images and PDFs to Word, Excel, TXT, searchable PDF and other formats.

Powered by ABBYY's leading OCR technology, support more than 180 languages.The recognition rate reaches up to 98%,

supporting the mixed recognition of multi-language, character, and number with the same layouts results as original images.

JOYUSING document scanner makes digitizing processes fast and easy.

8

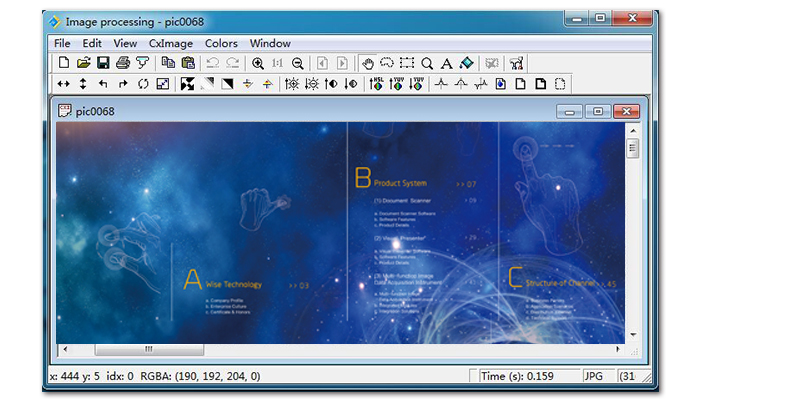

Image edits processing

JOYUSING software has strong image edit functions: rotate, characters adding, image cutting, saturation,  contrast Ratio.

9

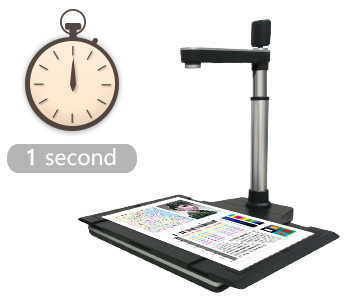

Fastest scanning

It is specially designed for information counters which have very high requirement on high speed scanner.


10




11

Video recording

It can record the progress of any operation or demo for

real time display applied in lab operation steps, product

training and other demonstration.



PDF conversion

Different documents can be scanned and converted into PDF which can be checked on various devices.

OCR




13


All-Round scan

Suitable to scan documents, receipts, bills,

certificates, books, 3D real objects etc.

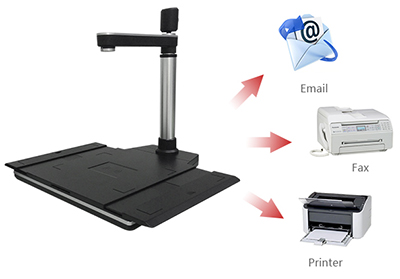

Print, Fax, Email, Office Integration

JOYUSING K163 software can be connected to email,

fax and printer to achieve office all-in-one.


14

Specification of K series document scanner

Resolution of main camera4608×3408(16MP); 2592x1944(5MP), 3651x2738(10MP)optional
Sensor1/3.2'' CMOS
Image colorRGB24bits
Focus modeManual / Fixed
Exposure modeAuto / Manual
Shooting Object typesDocuments, all kinds of vouchers, 3D objects and so on
Shooting areaA3、A4、A5、A6、sim card
Image formatJPG、TIF、PNG、BMP、PDF
Image sizecolor≤300K;mono≤60K
Image qualityUnrecognizable flashing, ripples, noise with the naked eye, conventional light changes do not affect the picture quality
Light sourceNatural light, LED auxiliary light source
Scan speed≤1 Second
Product size341x341x305mm(fold) / 420x341x397mm(unfold)
(Vice camera height:52mm)
Weight1270g
InterfaceUSB2.0
Redevelopment interfaceProvide complete redevelopment kit and DEMO


Ordinary vice camera

(optional)

Sensor1/4" CMOS
Resolution1600×1200(2MP)
Image colorRGB(24bits)
FocusFixed
Start Time≤1 Second
Image size≤150K
InterfaceUSB2.0

High Definition with

vice camera (optional)

Sensor1/2.8" CMOS,SONY
2.0M HD camera
ResolutionFULLHD(1920×1080)
FocusFixed
Viewing Angle60 degree
★Frame rate30fps
Start Time≤1 second
Image size≤150K
InterfaceUSB2.0
FeatureThe use of custom image processing chip, according to indoor window environment and the subject (face) to adjust the imaging results, intelligent backlight compensation, capture the higher rate of portrait recognition.*** Face tracking *** Automatic exposure *** Intelligent backlight compensation

Microphone

(optional)

Sensitivity-47dB±4dB
Decreased sensitivity-3dB at 1.5V
Operating Voltage4.5V
Frequency response100~16kHz
 Noise-signal ratio≥ -67dB

ID Card Reader

(optional)

Support typeID card in China Mainland
Power5V/2A

Fingerprint reader

(optional)

Fingerprint sensor Capacitive
Fingerprint image<0.005S
Fake rate(FAR)≤0.00001%(Security level is 3)
Reject true rate(FAR)≤0.00001%(Security level is 3)
Compare time≤1S
Identified waySupport fingerprint verification (1: 1) and fingerprint search (1: N)
InterfaceRS-232/USB2.0
Volume97mm×48mm×18mm
Effective collection area12mm×15mm
