Availability: | |
---|---|
High Performance
Easy for anyone to use

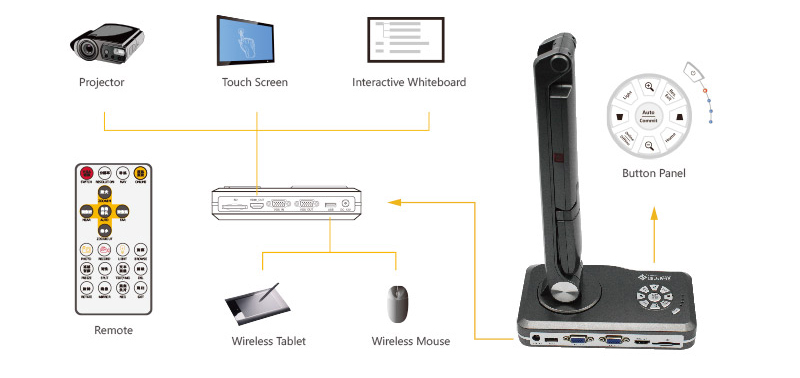

Easy Connection panel for quick installation
Clear icons and marking make connecting the Visual presenter
Teach From Anywhere In Your Classroom
You can control Visual presenter and projector, interactive whiteboard,touch screenwith a single remote in anywhere in classroom.
Large and Clear Controls For Easy Use
Like projectors, the control panel uses large and clear lettering

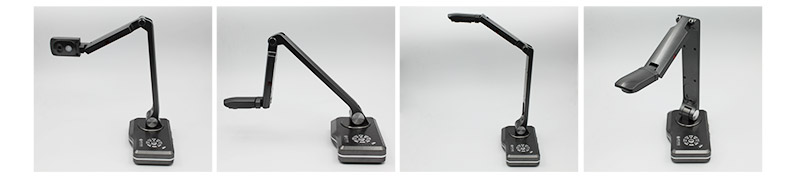

Capture Images From Various Angles
Rotating Camera Head Provides Great Versatility
Capture image of a 3D object from any angle, or even a full classroom view, by adjusting the arm position, the rotating camera head and the digital zoom in various combinations.
Enhanced PC Less Function

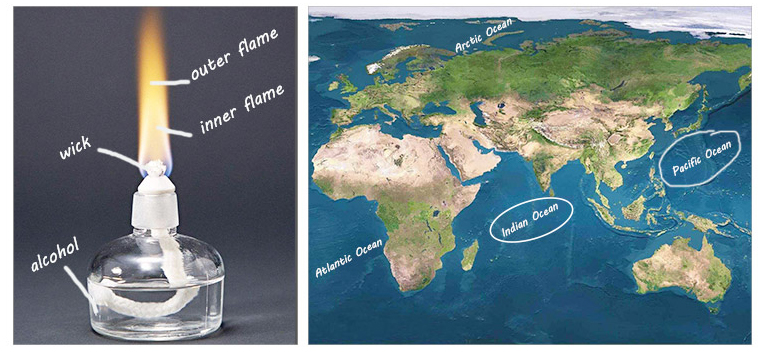

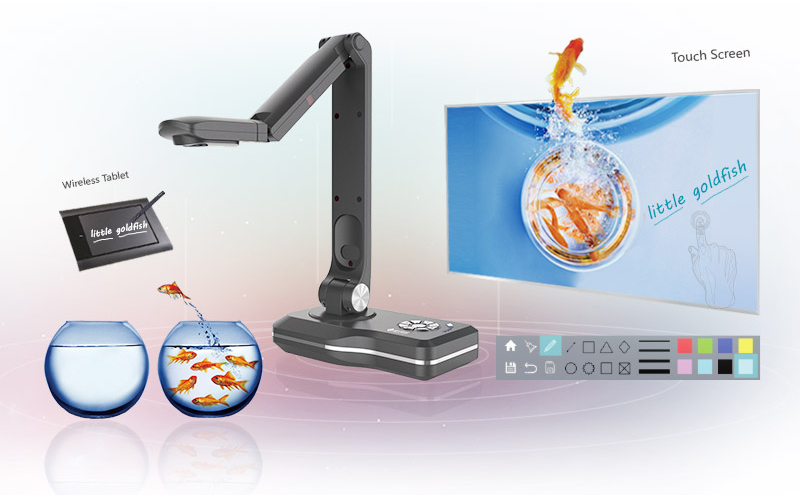

PC less annotation
PC less annotation allows teachers to connect via USB mouse, wireless tablet or touch screen and visual presenter directly. Annotate line, circle, quadrangle, writing etc. on live image.
Advanced Functions
Marquee zoom
With touch screen use, through the box selected part, you can screen full view of the selected local details

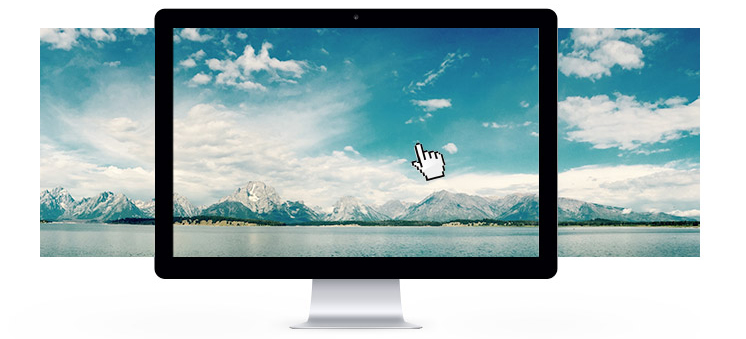

Image roaming drag Region zoom in
Show content beyond the display window, roaming dragging and also region zoom in, making teaching easily
Picture-in-picture
The picture-in-picture allows you to show a large window with a featured section, while a smaller window
keeps perspective on the original image. So, students stay focused and the lesson remains clear.

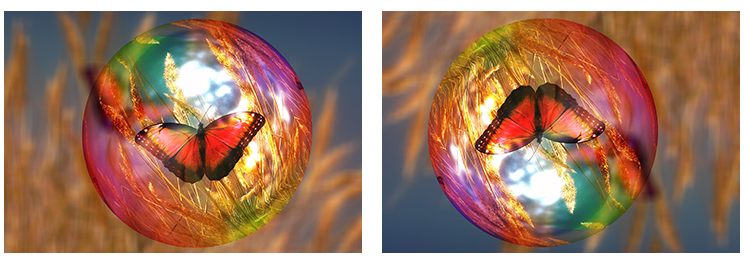

Mirror function
So that the image can be multi-faceted display, make teaching more convenient to show freely.
Split Screen Function
The split screen function allows the live image of an object being captured to be displayed alongside
an image stored on the internal/ external memory. This dual projection capability can help to improve
student understanding by showing complimentary data。
Convenient profession Software
Making use of the included profession application software helps to enrich content and facilitate more
engaging lessons, The V500 can also be used as a basic video camera to capture student presentations.
Videos and Still Images Captured Beautifully With Audio Data Saving Feature (Video/ Still Images)
Save videos or still images captured by an SD card or PC. The record function also allows audio data to be
saved with animated images. This allows the Visual presenter to be used as a basic video camera.
Save Text and Drawing Data During Capture Live Image Annotation and edit Feature
Add written text and drawing to the live image, and save both annotation and image data together.

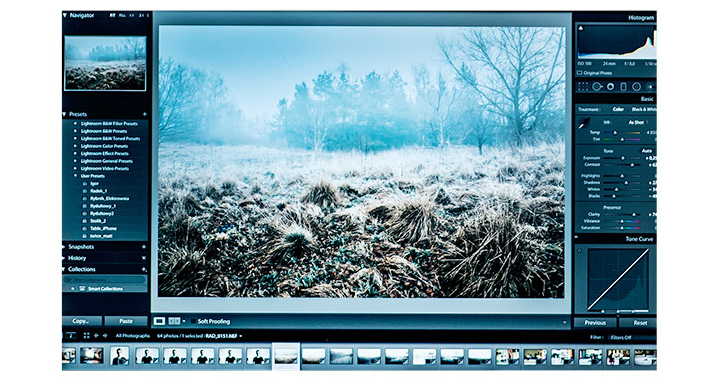

Keep Multiple Files Neatly Organized and Post-processing
File Management Feature Manage saved capture data into groups according to time, subject,
and importance. Also support file post-processing.
User Friendly Design
Image Rotation
Capture images of a 3D objects/ whiteboard/ chalkboard can be easily by adjusting the arm position and rotating camera head

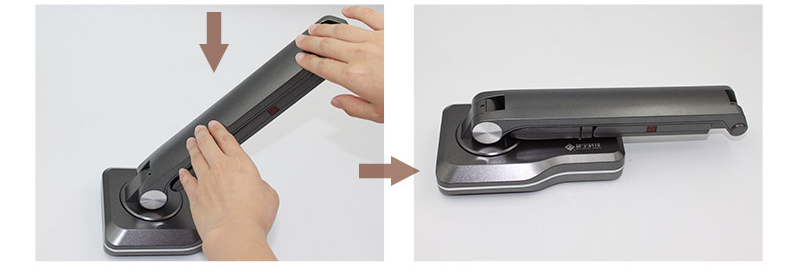

Smart Portability Design
The new mechanical structure allows users to fold and easy to store, making it ideal for smaller classrooms with limited space
High Performance
Easy for anyone to use
Easy Connection panel for quick installation
Clear icons and marking make connecting the Visual presenter
Teach From Anywhere In Your Classroom
You can control Visual presenter and projector, interactive whiteboard,touch screenwith a single remote in anywhere in classroom.
Large and Clear Controls For Easy Use
Like projectors, the control panel uses large and clear lettering
Capture Images From Various Angles
Rotating Camera Head Provides Great Versatility
Capture image of a 3D object from any angle, or even a full classroom view, by adjusting the arm position, the rotating camera head and the digital zoom in various combinations.
Enhanced PC Less Function
PC less annotation
PC less annotation allows teachers to connect via USB mouse, wireless tablet or touch screen and visual presenter directly. Annotate line, circle, quadrangle, writing etc. on live image.
Advanced Functions
Marquee zoom
With touch screen use, through the box selected part, you can screen full view of the selected local details
Image roaming drag Region zoom in
Show content beyond the display window, roaming dragging and also region zoom in, making teaching easily
Picture-in-picture
The picture-in-picture allows you to show a large window with a featured section, while a smaller window
keeps perspective on the original image. So, students stay focused and the lesson remains clear.
Mirror function
So that the image can be multi-faceted display, make teaching more convenient to show freely.
Split Screen Function
The split screen function allows the live image of an object being captured to be displayed alongside
an image stored on the internal/ external memory. This dual projection capability can help to improve
student understanding by showing complimentary data。
Convenient profession Software
Making use of the included profession application software helps to enrich content and facilitate more
engaging lessons, The V500 can also be used as a basic video camera to capture student presentations.
Videos and Still Images Captured Beautifully With Audio Data Saving Feature (Video/ Still Images)
Save videos or still images captured by an SD card or PC. The record function also allows audio data to be
saved with animated images. This allows the Visual presenter to be used as a basic video camera.
Save Text and Drawing Data During Capture Live Image Annotation and edit Feature
Add written text and drawing to the live image, and save both annotation and image data together.
Keep Multiple Files Neatly Organized and Post-processing
File Management Feature Manage saved capture data into groups according to time, subject,
and importance. Also support file post-processing.
User Friendly Design
Image Rotation
Capture images of a 3D objects/ whiteboard/ chalkboard can be easily by adjusting the arm position and rotating camera head
Smart Portability Design
The new mechanical structure allows users to fold and easy to store, making it ideal for smaller classrooms with limited space
V500 Document Camera Specification
Hardware | Model | V500 | ||
Sensor | 1/2.5"CMOS Auto Focus | |||
Resolution | 8 MegaPixel | |||
SXGA 1280×960 | ||||
1080P 1920×1080 | ||||
720P 1280×720 | ||||
Power Input | DC12V 1A | |||
Function | Image Processing | Image Processing Contrast, Saturation, Edge Enhancement, Digital Noise Reduction, Annotation Display, Frezze (roaming, zooming, annotation), mirroring (roaming, zooming, annotation), Contrast (freeze, zoom, roaming), PIP (freeze, zoom) | ||
Auto | White Balance / Brightness / Auto Focus | |||
Digital Zoom | ×100 (roaming, mouse scroll to enlarge) | |||
Image Rotation | 0°/90°/180°/270° | |||
Anti-blinking | Support 50HZ/60HZ | |||
Color Display | ||||
Menu / OSD | UI interface Chinese / English | |||
Photograph | JPEG,1080P,5M | |||
Record | ||||
USB Control | PC software, camera support (1080P, 5M) | |||
UVC | UVC,WIN/MAC | |||
YUV 2592×1944/2fps(for computer photo) | ||||
YUV 1920×1080/5fps MJPG 1920×1080/15fps | ||||
YUV 1280×720/12.5fps MJPG 1280×720/15fps | ||||
YUV 800×600/15fps MJPG 800×600/15fps | ||||
OCR recognition | ABBYY support | |||
Generate PDF document | Support | |||
Interface | DC power | DC12V,Φ5.5mm | ||
Audio | Built-in MIC / Reserved I2S Coder (Reserved I2S to HDMI) | |||
SD | SD2.0, maximum support 32G | Card type10 720P/30 | ||
Card type 10 1080P/15 | ||||
Card type 4 720P/20 | ||||
Card type 5 1080P/6 | ||||
USB port | Supports mouse, USB cable | |||
VGA port | ×1 | |||
VGA/HDMI | 1920×1080@60HZ | 1280×1024@60HZ | ||
1024×768 @60HZ | 1280×720@60HZ | |||
LED indicates light | 4, Power Light(Red), Working light(Green), Visual Presenter and connent to PC(blue),PC input(Green) | |||
LED Lighting | Top Light, on/off;Side lights, Support three grades dimming | |||
Button | Power; Zoom In/Out; Focus; Far focus; Near focus; Light; Navigation; PC Connection; Resolution | |||
Operation | Button | Operates on OSD | ||
Mouse | Support operates on menu and OSD | |||
Remote | Operates on OSD |
