Joy-DocCam V500s Visual Presenter

1. 8 Mega Pixels HD autofocus visual presenter, high-brightness LED lights
2. Flexible two arms with 5 joints
3. Almost A3 shooting area, supports macro photography
4. Built-in microphone, 1080P HD quality, audio and video recording and storage into SD card
5. Infrared remote control
6. Seamlessly compatible with touch screen / interactive whiteboard / projector and other display devices
7. Support wireless mouse, wireless tablet, touch control operation
8. PC-free operation, drag roaming, split screen contrast, picture in picture, instant comments, etc.
9. Support ABBYY OCR character recognition


Easy for anyone to use

For Easy Use

Connect to computer and link to projector, monitor or interactive whiteboard via comptuter output.

Plug & Play USB Connection with PC

The only one document camera powered by USB cable, it can save to carry the AC adaptor.

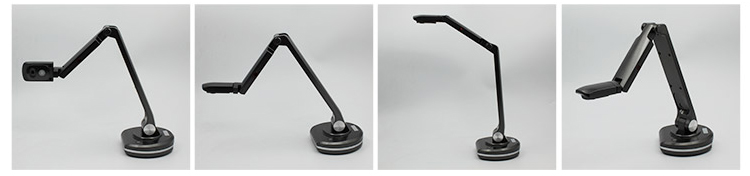

Capture Images From Various Angles

Rotating Camera Head Provides Great Versatility

Capture image of a 3D object from any angle, or even a full classroom view, by adjusting the arm

position, the rotating camera head and the digital zoom in various combinations.



Advanced Functions

Image roaming drag Region zoom in

Show content beyond the display window, roaming dragging and also region zoom in, making teaching easily

zoom in

Split Screen Function

The split screen function allows the live image of an object being captured to be displayed alongside

an image stored on the internal/ external memory. This dual projection capability can help to improve

student understanding by showing complimentary data。

split screen

Convenient profession Software

Making use of the included profession application software helps to enrich content and facilitate more

engaging lessons, The V500S can also be used as a basic video camera to capture student presentations.

Videos and Still Images Captured Beautifully With Audio Data Saving Feature (Video/ Still Images)

Save videos or still images captured PC. The record function also allows audio data to be

saved with animated images. This allows the Visual presenter to be used as a basic video camera.


Save Text and Drawing Data During Capture Live Image Annotation and edit Feature

Add written text and drawing to the live image, and save both annotation and image data together.


Keep Multiple Files Neatly Organized and Post-processing

File Management Feature Manage saved capture data into groups according to time, subject,

and importance. Also support file post-processing.


User Friendly Design

Weighting less than 0.9kg

The V500S is also lightweight, allowing teachers to easily move it between classrooms and share

the benefits of its enhanced presentation capabilities.

Image Rotation

Capture images of a 3D objects/ whiteboard/ chalkboard can be easily by adjusting the arm position

and rotating camera head

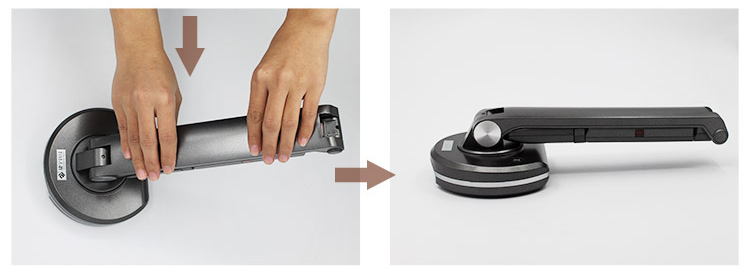

Smart Portability Design

The new mechanical structure allows users to fold and easy to store, making it ideal for smaller

classrooms with limited space


      V500s Document Camera Specification

VideoPick-up device1/2.5'' CMOS Sensor
Effective pixels8M Pixels
Frame rate Max. 30fps
Optical systemLenF=2.8
Shooting AreaMax. Max 420MM*297MM(Almost A3)
ZoomMax 5x
Illumination SystemUpper light LEDx 1Side lights LED x 10
GeneralOperating Temperature-10℃ to 50℃
Operating Humidity20%-80%
Dimensions OpenW140xD310xH320mm
Dimensions FoldedW140xD322xH80mm
FunctionZoom DigitalYes
Focus adjustmentYes
Brightness adjustmentYes
Black & whiteYes
Saturation Yes
Edge enhancementYes
Digital denoiseYes
Roaming dragYes
Split screenYes
Video captureYes
Flicker redctionYes
Image rotationYes
All-round scanYes
Source (PC)Yes
White balanceAuto/ Fluorescent/ Incandescent/ Cloudy/ Daylight
Playing the videoYes
Color modeText/ Image
PowerUSBUSB interface class
USB video classUSB audio class
Compatibility for OS PCWindows XP or Above.
AccessoriesUSB cableYes
Application softwareYes
Quick set-up guideYes
Application softwareLanguageEnglish / Chinese
Annotation(Live/ Still image)Yes
Still image captureYes
Video captureYes
Intelligent file managementYes
Save format (still image)JPEG
Save format (video) for windowsAVI
OCR functionABBYY OCR technology
